RGBW LED Strip Connector

Chinese Professional Addressable LED Lights Manufacturer & Supplier

The 5-pin RGBW LED strip connector is designed for RGBW (red, green, blue, white) LED strips. The RGBW LED strip connector features a four-pin configuration that allows independent control of each color channel, providing precise color adjustment and a variety of vibrant lighting effects. 5mm, 8mm, 10mm, and 12mm solderless snap-on LED strip connectors are available. T-shaped connectors, L-shaped connectors, tape-to-tape connectors, and ribbon-wire-ribbon connectors are available.

5 Pin Connector Without Wire For RGBW LED Strip

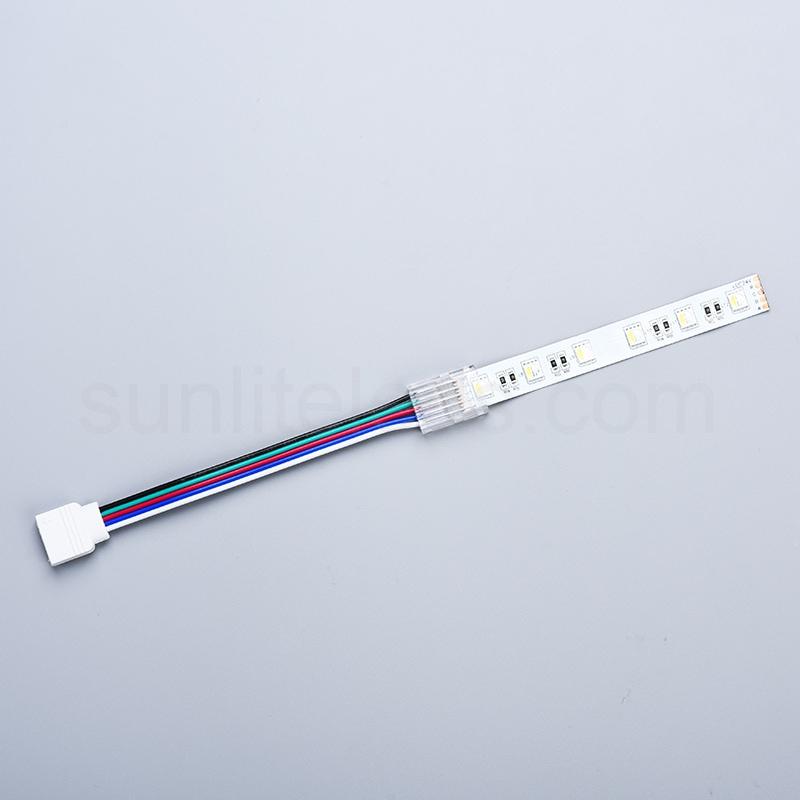

5 Pin Ribbon to Wire Connector For RGBW LED Strip

5 Pin Ribbon Wire Ribbon Connector For RGBW LED Strip

5 Pin Tape to Tape Connector For RGBW LED Strip

5 Pin Strip to DC Female Plug Connector For RGBW LED Strip

5 Pin L Shape Ribbon Wire Ribbon Connector For RGBW LED Strip

5 Pin L Shape Tape to Tape Corner Connector For RGBW LED Strip

5 Pin Tape to Tape T-Shape Connector For RGBW LED Strip

Related Products

Bulk Wholesale LED Light Strip Connector

Suntech Lite is a source LED light strip connector supplier. We provide various types of LED light strip connectors. According to the different functions of LED strip connectors, they can be divided into L-shaped connector series, T-shaped connector series, ribbon-to-ribbon connector series, ribbon-wire-ribbon connector series, and so on. According to the number of PINs, our LED light strip connectors can be divided into 2PIN, 3PIN, 4PIN, 5PIN, and 6PIN. The light strip’s width can be divided into 5mm, 8mm, 10mm, and 12mm.

2-PIN LED strip connectors can be used with either single color or white LED strips.
3-PIN LED strip connectors can be used with tunable white LED strips, CCT LED strips or addressable LED strips.
4-PIN LED strip connectors can be used for RGB LED strips.
5-PIN LED strip connectors can be used with RGB+W or RGBW LED strips.
6-PIN LED strip connector can be used with RGB+CCT or RGBWW or RGB+tunable white LED strips.

How to Connect LED Strip Connector?

How to Connect LED Strip Connector

Step 1: Open the stripped end of the connector and peel off the 3M paper on the back of the light strip.

Step 2: Insert the LED light strip into the solderless connector. The pins of the light strip need to be in accurate contact with the copper spikes of the connector.

Step 3: Gently push the plastic lock back to the locked position and close the lid tightly.

Important: Before pressing the connection, please check whether the positive and negative poles of the light strip are consistent with the other end

LED Strip Connector Troubleshooting

LED Strip Connector Troubleshooting

If you notice the light strip flickering or failing to light up, there may be a connection issue. You can check from the following aspects.

1. Make sure the teeth are pointing up through the strip and pressing the wire into the groove.

2. Don’t mix wires. Polarity is important, make sure positive to positive and negative to negative.

3. Make sure you use compatible light strips that match the size and voltage of our RGB COB LED strip connectors.

Solderless LED Strip Connector Advantages

  • 【Compatible with multiple sizes of LED strip lights】5mm, 8mm and 10mm are available in multiple sizes. Transparent intermediate connectors avoid blocking light, leaving no dark areas.
  • 【Solderless extendable connector】 A variety of LED connector accessories are available: L-shape, T-shape, ribbon to wire, tape to tape, tape wire tape and other types that can extend the length of the strip light to the power supply or connector, thus eliminating the problem of limited space and enabling corner connections.
  • 【Easy to Use】Easy to install and no soldering required, this cob connector kit allows you to DIY safely and easily, saving you time and money.
  • 【Stable Connection】 Stable connection and durable. Important: Before pressing the connection, please check whether the positive and negative poles of the light strip are consistent with the other end.

2 Pin vs. 3 Pin vs. 4 Pin vs. 5Pin vs. 6 Pin LED Strip Connector

2-pin led strip connectors are used to connect single-color LED strip lights.

2 Pin led strip connectors

On the circuit board, there are two copper pads, one positive and one negative. And the two copper pads are the strip light’s connecting points. This is where the term “two-pin” comes from. Please check for 2-pin led strip connections if your led strip light is white, red, blue, green, or any single color.

3-pin led light strip connectors are used for tunable white led strip lights and single-signal addressable led strips.

3 Pin led strip connectors

Tunable white led strip lights, also known as dual white led strips or CCT led light strips, come in two white colors: warm white and daylight white. You may choose the color to use in each scenario. They also include three copper pads for warm white and daylight lines, one positive and two negative.

There are three copper pads on single signal addressable led strips. However, there are three: one for positive, one for negative, and one for the digital signal line.

4-pin led strip light connectors are used for RGB color changing led strip lights, dual signal addressable LED strip lights, and breakpoint resume addressable LED lights.

4 Pin led strip connectors

RGB led strips are the most well-known led light strips. We frequently see folks inquiring how to connect RGB led strips. RGB color shifting lights have four copper pads, one positive and three negative R, G, B color lines.
There are four copper pads on dual signal addressable led strip lights and breakpoint resume addressable led strip lights. Also included are one for positive, one for negative, one for the clock or backup line, and one for the digital signal line.

It should be noted that addressable RGB led strip lights do not always require 4-pin connections. When choosing led connectors for addressable light strips, consider the signal line rather than the number of connecting points.

5-pin led strip connectors feature five copper pads and are used for RGBW led strip lights. For the R, G, B, and W colors, there is one positive line and four negative lines.

5 Pin led strip connectors

6-pin led strip light connectors are used for RGBCCT led strips. There are six copper pads, one for positive as the same and the others for R, G, B, W, and WW color lines. You can see that an RGBCCT led strip light is comparable to an RGB led strip light with a tunable white led strip.

6 Pin led strip connectors

Why Choose Suntech Lite COB LED Strip Connector?

Suntech Lite is a source LED light strip connector supplier. We provide various types of LED light strip connectors. According to the different functions of LED strip connectors, they can be divided into L-shaped connector series, T-shaped connector series, ribbon-to-ribbon connector series, ribbon-wire-ribbon connector series, and so on. According to the number of PINs, our LED light strip connectors can be divided into 2PIN, 3PIN, 4PIN, 5PIN, and 6PIN. The light strip’s width can be divided into 5mm, 8mm, 10mm, and 12mm.

LED Strip Connector Application

The LED strip connector is a versatile accessory that facilitates LED strip applications. Here are some common applications for LED strip connectors:

LED Strip Connector Application

1. LED Strip Extension: LED Connector allows easy expansion of LED strips. By connecting the connector to the corresponding pins on the LED strip, you can seamlessly extend the length of the strip to accommodate different installation requirements.

2. Corner and Angle Installation: LED strip lights can be cut and bent to fit corners or angled surfaces. The LED strip connector allows you to reconnect cut sections of the light strip, ensuring a continuous electrical connection without blocking light and no dark areas.

3. DIY Projects and Prototyping: The LED strip connector can also be used for DIY projects and prototyping. It simplifies the process of connecting and testing LED strips, making it easy to experiment and customize lighting solutions for a variety of applications.

4. Temporary installation: This connector provides a convenient solution for temporary installations or situations where flexibility and portability are required. It enables fast, secure connections, making it easy to install and remove LED strips in temporary event venues, trade shows or exhibition booths.

5. Repair and maintenance: When the COB LED light strip is damaged or requires maintenance, the connector can be used to replace the faulty part without replacing the entire light strip. This enables targeted repairs and minimizes downtime, saving time and costs.
