Outdoor Waterproof Addressable LED Strip
Product Description:
Outdoor waterproof addressable LED strips are waterproof, programmable LED strips that withstand outdoor exposure.
There are two types of waterproof flexible LED strips.
The first is analog type LED strips. Analog LED strips are full strip or full circuit controlled. LEDs connected in the same circuit respond in the same way to control signals from a remote LED driver or light controller.
In contrast, the second type of digital LED strip allows for selective control of its LEDs. The LEDs used on the strip have a controller IC that can individually address the diodes (LED chips) of the LED package. The use of individually addressable LEDs enables the strip to vary the output of different LEDs simultaneously and perform precise dimming control for precise control of light in RGB color mixing applications. This is the product “Outdoor waterproof addressable LED strip” introduced on this page.
Suntechlite offers waterproof addressable LED strips in a variety of colors, multiple waterproof ratings, LED densities, PCB widths, and control options.
Suntechlite’s outdoor waterproof addressable LED strips are sealed from beginning to end. All parts of the lighting system, including electrical connectors, power supplies and terminals, must be carefully designed to maintain the specified IP rating.
Waterproof Rating Description：
If you want to know more about different IP rating, please click to learn more, LED Strip IP20 VS IP65 VS IP67 VS IP54 VS IP68.
IP20: IP20 is not waterproof (PCB [printed circuit board] surface is exposed, with self-adhesive on the back, suitable for indoor use);
IP65: IP65 waterproof rating (epoxy covered waterproof, PCB surface is encapsulated with plastic gel, with self-adhesive 3M on the back, suitable for indoor and outdoor use);
IP67: IP67 waterproof (silicone cover waterproof, PCB is encapsulated with silicone tube, equipped with plastic fasteners, better waterproof performance, suitable for outdoor use);
IP68: IP68 waterproof (full waterproof plastic potting, PCB surface and back are encapsulated with plastic gel, equipped with plastic fasteners, the highest level of waterproof, suitable for outdoor use);
Waterproof LED Strip Sealing Material:
Suntechlite can customize the sealing material according to your requirements. We use resins such as epoxy resin, polyurethane (PU) and silicone resin for sealing. Among all sealing materials, silicone is the most popular due to its excellent UV stability, wide operating temperature range (-50 to 200°C), high bond strength and good thermal conductivity. Polyurethane resin has some noteworthy qualities (high light transmission efficiency, excellent moisture resistance and excellent resistance to a wide range of chemicals) that make it a strong competitor to silicone in outdoor applications.
Outdoor waterproof addressable led strip applications:
LED programmable digital display; hotel decoration purposes; ; theater, club, shopping mall lighting; architectural decorative lighting; boutique atmosphere lighting; auditorium staircase lighting; hidden groove; exhibition decoration.
Table of Contents
Addressable White LED Strip
Item: ST-WS2811-3PIN-W-60-12
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: No
PCB Width: 10mm
White Digital 12V LED Strip offers bright and efficient lighting with a digital control system, making it a perfect choice for any lighting project.
Item: STE-TTL-3PIN-W-60
LED Qty: 60
Voltage: DC12V/24V
Cutting Unit: 50 mm/100mm
Power: 14.4 W/m
Pixel Qty: 20/10 Pixels
Break Continue: No
PCB Width: 10mm
The unique 60LEDs WS2811 Addressable White LED Strip is specially designed by Suntech for making up addressable white color lighting needs.
Item: ST-UCS2903-5PIN-W-120-24
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100mm
Power: 24 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 20mm
Achieve stunning lighting effects with White Addressable Double Row LED Strip, featuring high-density and ultra wide, offering customizable lighting.
Item: ST-WS2818-4PIN-W-60-12
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: Yes
PCB Width: 10mm
Create a cozy atmosphere with our Warm White Addressable LED Strip, this LED strip is suitable for creating a welcoming and relaxing environment.
Item: ST-WS2815-3PIN-W-84-12
LED Qty: 84
Voltage: DC12V
Cutting Unit: 35.7mm
Power: 18 W/m
Pixel Qty: 84 Pixels
Break Continue: Yes
PCB Width: 6mm
The 84 leds Addressable Zigzag White LED Strip Light​ is perfect for sign lighting projects, it is extremely flexible and can fit any shape of signage.
Item: ST-WS2815/TX1818-4PIN-W-120-12V
LED Qty: 120
Voltage: DC12V
Cutting Unit: 8.3mm
Power: 17.2 W/m
Pixel Qty: 120 Pixels
Break Continue: Yes
PCB Width: 5mm
5mm 12V 120leds Individually Controlled White LED Strip, designed for customization and energy-efficient performance in various applications.
Item: ST-DMX-5PIN-W-60-24
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100mm
Power: 14.4 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10mm
Elevate your ambiance with the white DMX 24v LED strip Light, providing precise control and warm light, inviting illumination for any space.
Addressable CCT LED Strip
Item: ST-WS2811-3PIN-CCT-60-12
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: No
PCB Width: 10mm
The CCT addressable 12v LED strip 60leds is energy-efficient, consuming less electricity than traditional lighting alternatives, making it the perfect solution for energy-conscious environments.
Item: ST-WS2818-4PIN-CCT-72-12
LED Qty: 72
Voltage: DC12V
Cutting Unit: 41.6mm
Power: 17.2 W/m
Pixel Qty: 24 Pixels
Break Continue: Yes
PCB Width: 8mm
CCT 72leds pixel LED strip WS2818 is simple to set up and can be tailored to any length required. The strip is also energy-efficient, with low power consumption and a long lifespan.
Item: ST-GS8208-4PIN-CCT-60-12
LED Qty: 60
Voltage: DC12V
Cutting Unit: 16.6mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 10mm
The CCT Individually Controlled LED strip offers a versatile and adaptable lighting solution that can be used in various applications. With the ability to change the color temperature of each LED individually, this strip provides you the flexibility to adjust the lighting ambiance of your space to suit your needs.
With GS8208 IC each LED is individually controlled, DC12v input, 3m tape on the back of the PCB for easy installation, and each 16mm cuttable. What is more, each IC has a backup function which means if one IC is damaged, the signal can still pass through.
Item: ST-DMX-5PIN-CCT-60-12
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 19.2 W/m
Pixel Qty: 20 Pixels
Break Continue: Yes
PCB Width: 10mm
Installation is effortless thanks to the adhesive backing, and CCT DMX 12V LED strip can be cut to fit specific lengths for personal use or larger commercial projects.
Addressable RGB LED Strip
Item: ST-WS2811-3PIN-RGB-96-24
LED Qty: 96
Voltage: DC24V
Cutting Unit: 62.5 mm
Power: 19.2 W/m
Pixel Qty: 16 Pixels
Break Continue: No
PCB Width: 10mm
Upgrade your lighting game with our DC24V WS2811 RGB programmable LED strip, featuring 96leds/m and easy programmability for space lighting.
Item: ST-UCS1903-5PIN-RGB-30-12
LED Qty: 30
Voltage: DC12V
Cutting Unit: 100mm
Power: 7.2 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 10mm
Suntech provides UCS1903 pixel LED strip for quality RGB lighting. And we designed a unique UCS1903 strip that can connect 20m with no voltage drop.
Item: ST-WS2818-4PIN-RGB-60-12
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: Yes
PCB Width: 10mm
WS2818 arduino LED strip has a backup data wire for continuous transmission when one LED is broken on the strip. And the external ICs ensure stable performance.
Item: ST-WS2815-4PIN-RGB-120-12
LED Qty: 120
Voltage: DC12V
Cutting Unit: 16.6mm
Power: 24 W/m
Pixel Qty: 120 Pixels
Break Continue: Yes
PCB Width: 5mm
For DC12V WS2815 RGB pixel LED tape, we have different models: 5mm 120LEDs RGB strips, 10mm 96LEDs/60LEDs/144LEDs RGB strips.
Item: ST-WS2812B-3PIN-RGB-60-5V
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6mm
Power: 18 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 10mm
Suntech focuses on addressable LED strip lights, including WS2815, SK6812, and DMX LED strip. This WS2812B neopixel LED strip supports individual control.
Item: ST-APA102-4PIN-RGB-144-5V
LED Qty: 144
Voltage: DC5V
Cutting Unit: 6.9mm
Power: 43 W/m
Pixel Qty: 144 Pixels
Break Continue: No
PCB Width: 12mm
The APA102 144 leds strip offers superior brightness, color consistency, and precise control, and can create a dynamic lighting display for an event.
Item: ST-DMX-5PIN-RGB-60-12
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: Yes
PCB Width: 10mm
This auto-coding RGB DMX 12V LED Strip is perfect for adding a touch of color to any space or project, offering a range of vibrant colors.
Item: ST-DMX/GS8516-5PIN-RGB-120-48V
LED Qty: 120
Voltage: DC48V
Cutting Unit: 100mm
Power: 12 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10mm
The DMX GS8516C RGB LED strip has a breakpoint resume function and dual signal transmission data to ensure signal stability. Suntechlite provides a 3 to 5-year warranty.
Addressable RGBW LED Strip
Item: STE-4PIN-RGBW-72-24V
LED Qty: 72
Voltage: DC24V
Cutting Unit: 83.3 mm
Power: 24 W/m
Pixel Qty: 12 Pixels
Break Continue: Yes
PCB Width: 10mm
Normal pixel RGBW LED strip is 60leds/m, we developed this 72leds/m programmable RGBW LED strip with high density to supply to people’s requirements. TM1834 has dual signal wire make it more stable in practice.
Item: ST-UCS2904-5PIN-RGBW-60-24V
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100 mm
Power: 19.2 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 15mm
This 20m No Voltage Drop Addressable RGBW LED Strip is designed especially for large lighting projects to avoid the voltage drop problem.
Item: ST-SK6812-3PIN-RGBW-60-5V
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.67mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 10mm
10mm RGBW Individually Controlled SK6812 LED Strips offer superior color accuracy and individual control of each LED for stunning and precise lighting effects.
Item: ST-SK6812-3PIN-RGBW-60-5
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 5mm
For SK6812 5mm addressable LED strip, we have 60LEDs/m and 120LEDs/m with IP20/IP65/IP67/IP68 to choose, and length can be customized.
Item: ST-UCS7604-4PIN-RGBW-60-24
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100 mm
Power: 19.2 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10mm
Whether for accent lighting, home decoration, or an event, the UCS7604 break continue LED strip provides an amazing lighting experience that will transform any space.
Item: ST-DMX-5PIN-RGBW-60-12/24V
LED Qty: 60
Voltage: DC12/24V
Cutting Unit: 50/100mm
Power: 19.2 W/m
Pixel Qty: 20/10 Pixels
Break Continue: Yes
PCB Width: 10mm
DMX RGBW LED strip is suitable for stage and festival colorful lighting. This auto-address RGBW LED strip makes the DMX LED strip be simple.
Item: ST-DMX-5PIN-RGBW-96-24V
LED Qty: 96
Voltage: DC24V
Cutting Unit: 62.5mm
Power: 28 W/m
Pixel Qty: 16 Pixels
Break Continue: Yes
PCB Width: 10mm
A dual data signal 5 pin dmx controlled RGBW strip light with 96 LEDs per meter. Each 6-LED segment of this dmx RGBW led tape is controlled by a 5-pin UCS512 DMX512 IC chip, so 6 LEDs are a pixel.
Addressable RGBWW RGBCCT LED Strip
Item: ST-FW1906-3PIN-RGBCCT-72-24V
LED Qty: 72
Voltage: DC24V
Cutting Unit: 83.3 mm
Power: 24 W/m
Pixel Qty: 12 Pixels
Break Continue: No
PCB Width: 10mm
There are 5 colors on the same SMD LED, namely R, G, B, WW, DW. RGB and adjustable white light (2700K-6500K) are combined in each 5050SMD LED. And white light and RGB light can be controlled independently to create more than 1 trillion color combinations.

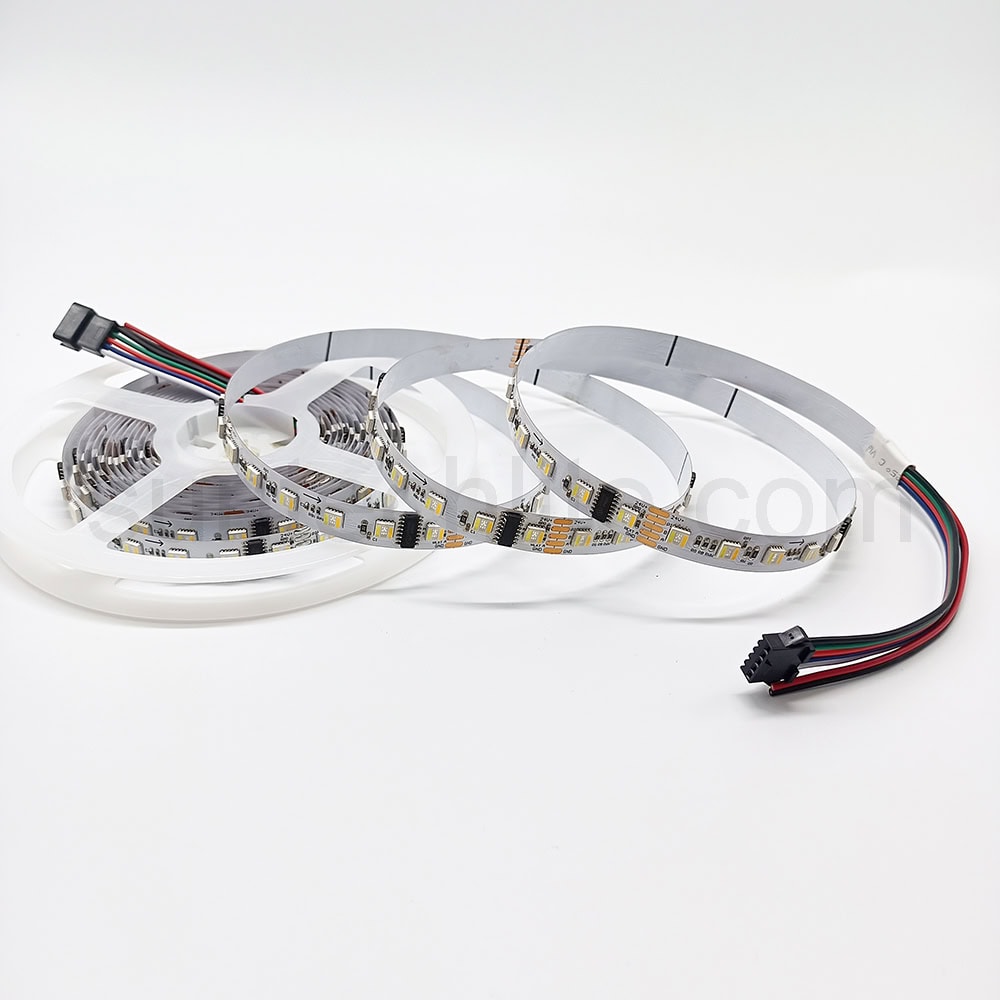

Item: ST-DMX-5PIN-RGBWW-72-24V
LED Qty: 72
Voltage: DC24V
Cutting Unit: 83.33mm
Power: 20 W/m
Pixel Qty: 12 Pixels
Break Continue: Yes
PCB Width: 12mm
24V DMX UCS512G6 LED strip uses SMD5050 LED package. Using DMX controller, users can achieve rich lighting effects and animations, such as flowing water, chasing and other lighting effects. DMX UCS512G6 LED strip is often used in professional lighting applications.
