Flex LED Sheet Panel Lighting Manufacturer
1. Flexible Design for backlit , signage lighting
2. Cuttable to various sections so assemble to any shapes necessary
3. Plug and Play with Onboard Connectors
4. Uniform Illumination with High-Density LED Design
5. Easy Application with Adhesive Backing and Screws
6. Versatile Options for Lighting Control, Singlor Color, RGB, RGBW, CCT , RGBWW are all available
7. Custom Solutions with OEM and ODM Support
8. Peace of Mind with a 5-Year Warranty
What Are Flex LED Sheet Panels?
Flex LED sheet panels are thin, flexible substrates with densely packed LED chips on their surface that emit uniform light. A flexible LED light sheet is also known as an LED sheet panel, LED paper sheet, LED backlight film, LED light flex sheet, or flexible LED backlit panel.
They can be cut along the marking lines into almost any shape and bent or folded to fit curved, tilted, or irregular surfaces. Intuitive plug-and-play connectors (such as XH or pigtail connectors) and adhesive backing design simplify installation and reduce labor costs. Its flexibility allows it to be installed inside a light box, panel frame, or directly behind translucent materials for smooth backlighting.
Wholesale LED Sheets By Color Temperature
Voltage: 24V
Power: 28W
LED Qty: 242 pcs
PCB Size: 490*245mm
CRI: >90
Color+Lumen Flux: W+2660 Lm
Light Efficiency: 95 Lm/w
Dimensions: 24V 22.3*22.3mm
Our white flexible LED sheets have a high color rendering index of 90 and include multiple color temperatures of 2700K, 3000K, 4000K, and 6000K. It can be cut to size and shape, making them ideal for a wide range of applications where traditional lighting solutions might not be suitable.
Voltage: 24V
Power: 40W
LED Qty: 484 pcs
PCB Size: 490*245mm
CRI: >90
Color+Lumen Flux: CCT+3310 Lm
Light Efficiency: 95 Lm/w
Dimensions: 24V 22.3*22.3mm
The flexible tunable white LED sheet adjusts the color temperature from warm 2700K to cool 6000K. CRI up to 90 ensures realistic colors, Even arrangement of led chips allow it to deliver even lighting across the surface, minimizing hotspots and shadows.
Voltage: 24V
Power: 50W
LED Qty: 288 pcs
PCB Size: 490*245mm
CRI: >80
Color+Lumen Flux: RGBW
Light Efficiency: 95 Lm/w
Dimensions: 24V 122.5*20.42mm
Flexible RGBW LED sheets provide full color spectrum and detailed white light control. It can be cut in any direction along the printed cut lines, allowing you to cut them into the shape or length you need. They can also be folded over edges or wrapped around columns and other curved surfaces.
Voltage: 24V
Power: 50W
LED Qty: 360 pcs
PCB Size: 490*245mm
CRI: >80
Color+Lumen Flux: RGBW
Light Efficiency: 95 Lm/w
Dimensions: 24V 122.5*20.42mm
The flexible RGBCCT LED sheet is powered by 24VDC. Its cuttable nature adds to its convenience and adaptability. It can be customized for unique lighting installations in museums, galleries, and special events.
Voltage: 24V
Power: 40W
LED Qty: 512 pcs
PCB Size: 635*304.8mm
CRI: >80
Color+Lumen Flux: RGBW
Light Efficiency: 70 Lm/w
Dimensions: 24V 39.68*38.1mm
Compared to a traditional single-color LED sheet, RGBW offers a richer color spectrum to enhance your surroundings. Besides RGB mixing, this strip light panel delivers 3000K white light for various color temperatures. A color-changing and dimming LED controller is available.
Voltage: 24V
Power: 20W
LED Qty: 98 pcs
PCB Size: 500*250mm
CRI: >80
Color+Lumen Flux: White
Light Efficiency: 95 Lm/w
Dimensions: 24V 35.71*35.71mm
The 24V flexible LED panel sheet with optical lens for marble illumination has a color rendering index of up to 90, and the colors are lifelike. A variety of color temperatures are available, including 2700K, 3000K, 3500K and 6000K.
Voltage: 12V
Power: 15.3 W
LED Qty: 150 pcs
Color+Lumen Flux: RGB
Light Efficiency: 40.2 Lm/w
PCB Size: 515*300mm
This WS2815 DC12V flexible RGBIC addressable LED panel sheet contains 150 LEDs per sheet. Brightness is 615 lm/pcs. The 15×10 pixel WS2815 flexible LED sheet allows individual control of each LED.
Single Color Flexible LED Sheet
The single-color white flexible LED light sheet has a color rendering index of up to 90, and the colors are lifelike. A variety of color temperatures are available, including 2700K, 3000K, 4000K and 6000K.
This high-efficiency LED chip panel operates at 24VDC and delivers 28 W of power per chip, producing approximately 95 lumens per watt. It measures 490 x 245 mm and holds 242 LEDs per slice for optimal brightness.
Enhances the visual appeal of architectural details and creates mood lighting in interior spaces.
Tunable White Flexible LED Sheet
The tunable white light flexible LED sheet lighting size is 490 x 245mm, using 484 SMD LEDs to provide consistent lighting, and the power is 40W.
Runs at 24VDC low voltage, energy-saving and safe. Light efficiency is 95 lumens per watt.
Whether it is backlit LED sheets, flexible LED sheets or cuttable LED light panel sheets, we can provide you with customized products.
It could be used to illuminate shelves, countertops, and promotional displays in retail environments.
RGBW Flexible LED Sheet
This RGBW LED flexible light panel 490 x 245mm LED sheet is equipped with 288 densely packed SMD LED chips per sheet, providing consistent brightness. The power is 50W, powered by 24VDC.
RGBW LED chips provide a full color spectrum and detailed white light control, increasing white light control over traditional RGB LED chips. The color rendering index of up to 90 makes the lighting colors vivid and lifelike.
It is perfect for creating ambient lighting in coves, ledges, or under cabinet areas.
RGBCCT Flexible LED Sheet
This 50W, 24VDC LED panel measures 490 x 245mm and contains 288 SMD LEDs. Available in a range of white color temperatures from warm (2700K) to cool (6000K) with a color rendering index up to 90. As well as RGB colors.
This flexible LED sheet is easy to install, can be cut, and supports customization, ODM and OEM.
LED sheets offer a modern, efficient, and highly adaptable lighting solution that meets the needs of various industries, from retail and hospitality to interior design and architecture.

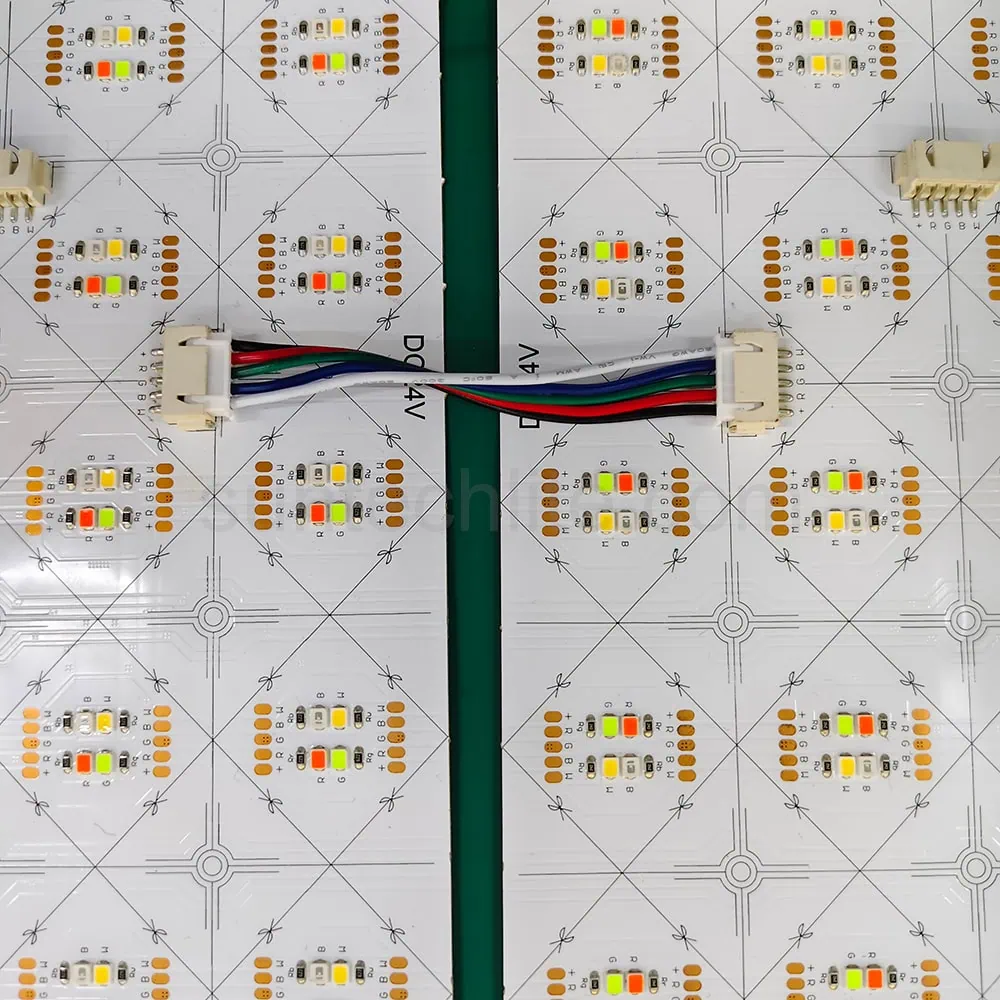

Flexible RGBW High Density Cuttable LED Panel Sheet
The back of the sheet features 3M double-sided tape and screw holes for easy installation. It easily adapts to flat, curved surfaces, or tight spaces. The minimum cuttable size for this 24V RGBW strip light panel is 39.68 x 38.1mm.
Compared to a traditional single-color LED sheet, RGBW offers a richer color spectrum to enhance your surroundings. Besides RGB mixing, this strip light panel delivers 3000K white light for various color temperatures. A color-changing and dimming LED controller is available.

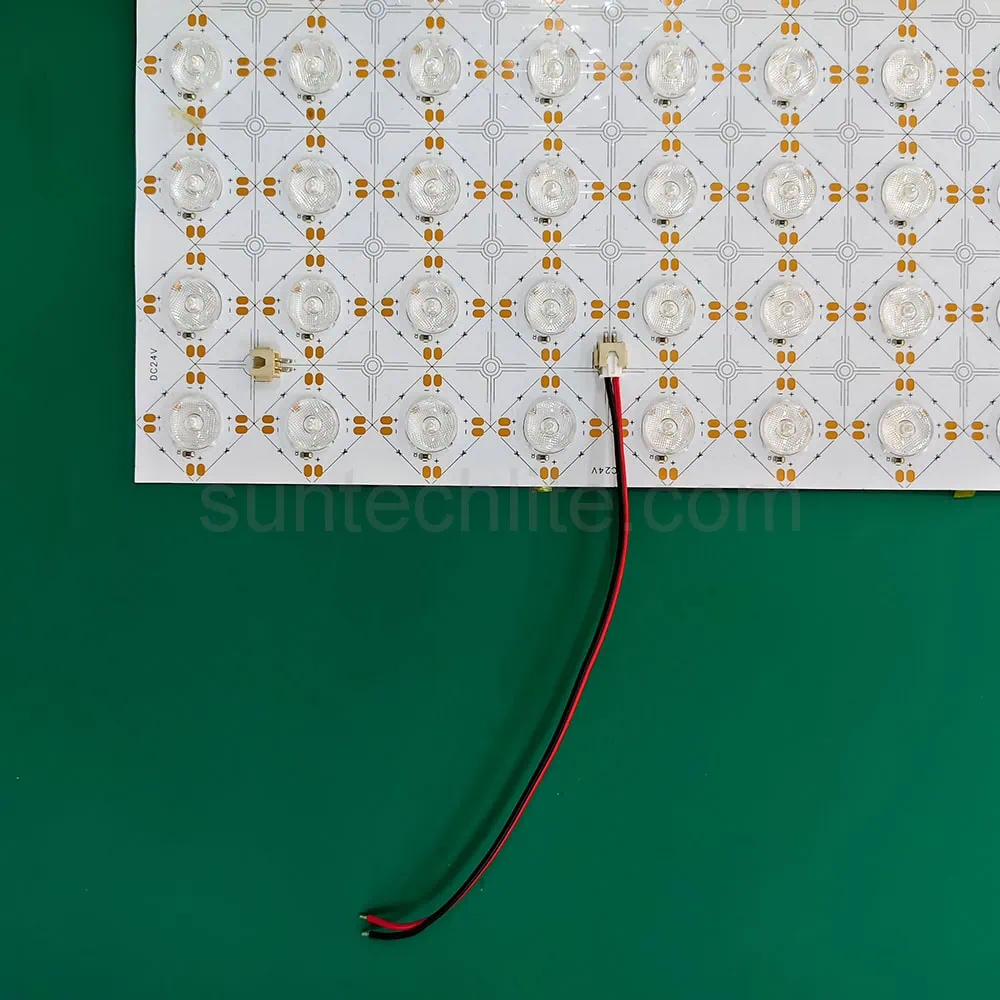

24V Flexible LED Panel Sheet With Optical Lens For Marble Illumination
The 24V flexible LED panel sheet with optical lens for marble illumination has a color rendering index of up to 90, and the colors are lifelike. A variety of color temperatures are available, including 2700K, 3000K, 3500K and 6000K.
This high efficiency LED chip panel operates at 24V DC and delivers 20W/PCS of power. Light efficiency is 95 lumens per watt. It measures 500 x 250 mm and holds 98 LEDs per slice for optimal brightness.
WS2815 DC12V Flexible RGBIC Addressable LED Panel Sheet
This WS2815 DC12V flexible RGBIC addressable LED panel sheet contains 150 LEDs per sheet. Brightness is 615 lm/pcs. The 15×10 pixel WS2815 flexible LED sheet allows individual control of each LED.
This LED panel sheet can be twisted to fit practically any curved surface due to its flexible backing. The thin, flexible shape makes it excellent for backlighting under-cabinet lights, display stands, and retail displays. Animations, games, and interesting electronic textile crafts can be made with it.
