DMX LED Strip Manufacturer
What is DMX LED Strip Light
DMX LED strip light is a type of addressable LED strip lights that can be controlled using DMX (Digital Multiplex) signals. DMX is a digital communication protocol that is commonly used in stage lighting and other professional lighting applications.
It typically has an integrated DMX decoder, which allows them to receive DMX signals and convert them into lighting effects. This allows for precise control over the color, brightness, and other parameters of the LED strip.
DMX LED tape light often used in professional lighting applications, such as stage and event lighting, as they offer advanced control capabilities and can be easily integrated into DMX lighting systems. They are also popular in stage lighting and other commercial installations, where precise control and customization are important.
How to Wire and Control DMX LED Strip
First, prepare a power supply, a controller, and a roll of DMX LED strips.
Second, connect the power wire and LED strip connector to the controller.
Third, connect the controller to the power supply.
Fourth, connect the DMX strip input terminal to the controller.
For DMX LED strips, we need to set addresses before controlling. The above video has shown the address setting process. About how to connect and control the DMX LED strip light, please click connect and control addressable LED strip, which includes the song guide of WS2811, WS2815 SPI LED strips and DMX LED strip.
Write Address for DMX LED Light
Auto Addressing DMX LED Light
Types of DMX Addressable LED Strip Lights
Item: ST-DMX-5PIN-RGB-60-12
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: Yes
PCB Width: 10mm
Item: ST-DMX-5PIN-RGB-60-24
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100mm
Power: 14.4 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10mm
Item: ST-DMX-5PIN-RGB-60-12
LED Qty: 60
Voltage: DC12V
Cutting Unit: 33.3mm
Power: 14.4 W/m
Pixel Qty: 30 Pixels
Break Continue: Yes
PCB Width: 10mm
Item: ST-DMX-5PIN-RGB-60-24
LED Qty: 60
Voltage: DC24V
Cutting Unit: 33.3mm
Power: 14.4 W/m
Pixel Qty: 30 Pixels
Break Continue: Yes
PCB Width: 10mm
Item: ST-DMX-5PIN-RGB-72-24
LED Qty: 72
Voltage: DC24V
Cutting Unit: 83.3mm
Power: 17.3 W/m
Pixel Qty: 12 Pixels
Break Continue: Yes
PCB Width: 8mm
Item: ST-DMX-5PIN-RGB-120-24
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100mm
Power: 28 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10mm
Item: ST-DMX-5PIN-RGBW-60-24V
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100mm
Power: 19.2 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10mm

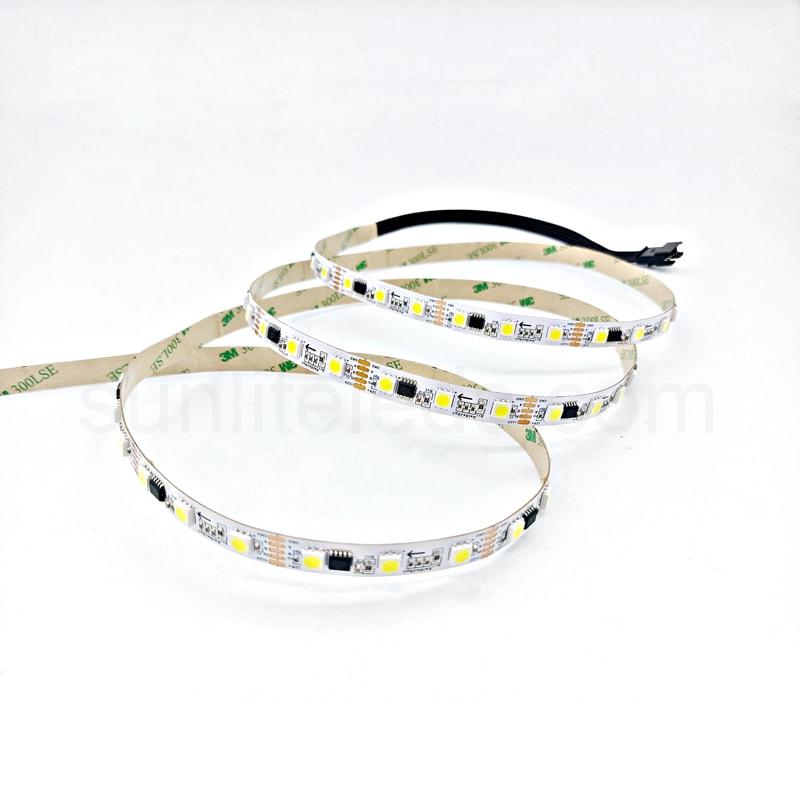

Item: ST-DMX-5PIN-W-60-12
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: Yes
PCB Width: 10mm
Item: ST-DMX-5PIN-W-60-24
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100mm
Power: 14.4 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10mm
Item: ST-DMX-5PIN-W-72-24
LED Qty: 72
Voltage: DC24V
Cutting Unit: 83.3mm
Power: 17.3 W/m
Pixel Qty: 12 Pixels
Break Continue: Yes
PCB Width: 8mm
Item: ST-DMX-5PIN-WWA-60-24
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100mm
Power: 14.4 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10mm
Item: ST-DMX-5PIN-CCT-60-12
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 19.2 W/m
Pixel Qty: 20 Pixels
Break Continue: Yes
PCB Width: 10mm
Item: ST-DMX-CCT-60-24V
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100mm
Power: 14.4 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10mm
Item: ST-DMX-CCT-72-24V
LED Qty: 72
Voltage: DC24V
Cutting Unit: 83.3mm
Power: 17.3 W/m
Pixel Qty: 12 Pixels
Break Continue: Yes
PCB Width: 8mm
Item: ST-DMX-5PIN-UV-60-24V
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100mm
Wavelength: 365nm/395nm
Pixel Qty: 10 Pixels
Power: 14.4 W/m
Break Continue: Yes
DMX LED Strip Specification Download
| File Name | Download |
|---|---|
| UCS512 60leds 72leds Addressable RGB LED Strip Specification |
|
| UCS512 60leds 72leds Addressable White LED Strip Specification |
|
| UCS512 60leds 72leds Addressable CCT LED Strip Specification |
|
| UCS512 60LEDs Addressable RGBW LED Strip Specification |
|
| UCS512 120leds Addressable RGB LED Strip Specification |
|
Product Features
Advanced control capabilities: Can be controlled using DMX signals which is a standard international protocol which match various controllers that support DMX signale. DMX has strong anti-interference ability which could be used for large and important project.
Wide range of color options: We can produce a wide range of colors, including RGB, RGBW, and addressable white, making them ideal for creating dynamic and customizable lighting effects.
High-quality and reliable : DMX chip we use brand UCS or TM , both are quite reliable and stable
Easy integration: Can be easily integrated into DMX lighting systems, allowing for seamless control and synchronization with other lighting fixtures.
Easy to control: Can be easily controlled using a variety of devices, including DMX controllers, computer software, and mobile apps, providing convenient and flexible control options.
DMX vs. SPI LED Strip
DMX LED strips are typically more complex and expensive than SPI LED strips, but offer a wider range of professional-grade features and capabilities, making them suitable for use in stage lighting, architectural lighting, and other high-end applications.
SPI LED strips are more affordable and easy to use than DMX LED strips, making them a popular choice for DIY and hobbyist projects, as well as smaller-scale lighting installations.
For more differences between DMX and SPI, please check this article: DMX vs SPI Strip Light
DMX LED Lighting Applications
Concert lighting
Fashion show lighting
Theme party lighting
Wedding reception lighting
Museum exhibit lighting
Trade show booth lighting
Casino lighting
Dance club lighting
Holiday lighting displays
DMX LED Tape Light Accessories
Cable Connectors
Why Choose SunTechLite
Located in Shenzhen, SunTechLite is one of the leading LED strip lights manufacturers in China. After 15 years of development, we have developed into a company integrating production and trade, and have won the trust and support of customers from all over the world with high-quality products and high-quality services.
Our Addressable LED light strips have the following main advantages:
- PCB thickness: SuntechLite uses 0.25mm and 0.35mm PCB for our regular strip lights. (The thickness of the general PCB on the market is 0.2mm.) The thicker the PCB board, the greater the current flowing, and the higher the efficiency of the light strip.
- High-quality Resistors: Authentic Guarantee, Antioxidant. DC12v LED strip generally uses 0.8mm*0.5mm resistors, DC24v LED strip generally uses 1.2mm*0.6mm resistors. This makes the strips have good heat dissipation, high temperature resistance, and very stable.
- Dual capacitor design: Dual capacitor design can protect the IC, and the signal transmission is stable.
- Firm light strip connection: Tin is added to the connection of the light strip, which is convenient for welding after cutting. The solder joints are full, and there will be no false welding.
Besides, we have a specialized engineering team to offer technical support and assistance with the installation and programming of the LED strips. And you can feel free to contact us if any questions in the using process.
To know more about our PCB design advantages, please click unique PCB design by Sunlite. This article has described our PCB design with detailed products and pictures in detail. And we have made a PDF profile to describe the advantages of the LED strip light, please click Suntechlite LED Strip Advantages to view details.
FAQ about DMX LED strip
1. How do I connect DMX LED digital strips to a DMX controller?
DMX digital strips can be connected to a DMX controller using a DMX cable or wireless DMX transmitter. The wiring should be connected to the DMX decoder or controller according to the manufacturer’s instructions.
2. Can DMX LED digital strips be dimmed?
Yes, DMX LED digital strips can be dimmed using a DMX controller or software. This allows users to adjust the brightness of the LED strip to the desired level.
3. How do I control multiple DMX strip lights?
Multiple DMX strip lights can be controlled using a DMX controller or software that supports multiple DMX universes or channels. This allows users to synchronize the lighting effects of multiple fixtures.
4. How do I address DMX512 LED strips?
DMX512 LED strips are typically addressed using DIP switches or software. The address determines the DMX channel that the LED strip will respond to. You can click “How to Write Address for DMX LED Lights” to watch the video guide.
5. Can I cut DMX addressable LED strips to fit a specific length?
Yes, DMX addressable LED strips can usually be cut to fit a specific length. However, it is important to cut the strip at the cutting mark places.
