Addressable RGBW LED Strip
Addressable RGBW LED strip advantages
The advantages of digital pixel LED strips include the ability to create more complex and dynamic lighting effects, and greater versatility in terms of color combinations and animations. Thanks to the use of RGB and white LEDs, color accuracy is excellent. Addressable RGBW LED strips have a wide range of applications, from home decor to stage illumination.
The IC that supports addressable RGBW in the market is built-in IC SK6812, external IC UCS2904, TM1834 UCS7604 and TM1814.
At Suntechlite, we offer various types of RGBW addressable LED strips and addressable LED strip unique PCB design.
Regular RGBW LED strips are available from Suntechlite. Digital data signal commands control addressable RGBW LED strips. Addressable RGBW LED strips may display a wide range of color effects and accomplish your project’s desired impact by programming an ARGBW IC.
The standard option on the market is the DC5V SK6812 RGBW LED strip. It can precisely control each LED to achieve rich color effects and pure white light. In addition, we also support DC12V and DC24V versions of the SK6812 RGBW strip. DC12V and DC24V reduce the voltage drop for long-distance installations and are a common choice for architectural and large LED strip lighting projects. SK6812 RGBW 5V VS 12V VS 24V
We also offer regular addressable RGBW LED strips in DC12V and DC24V. Provide high-quality RGBW LED strip products for indoor and outdoor lighting.

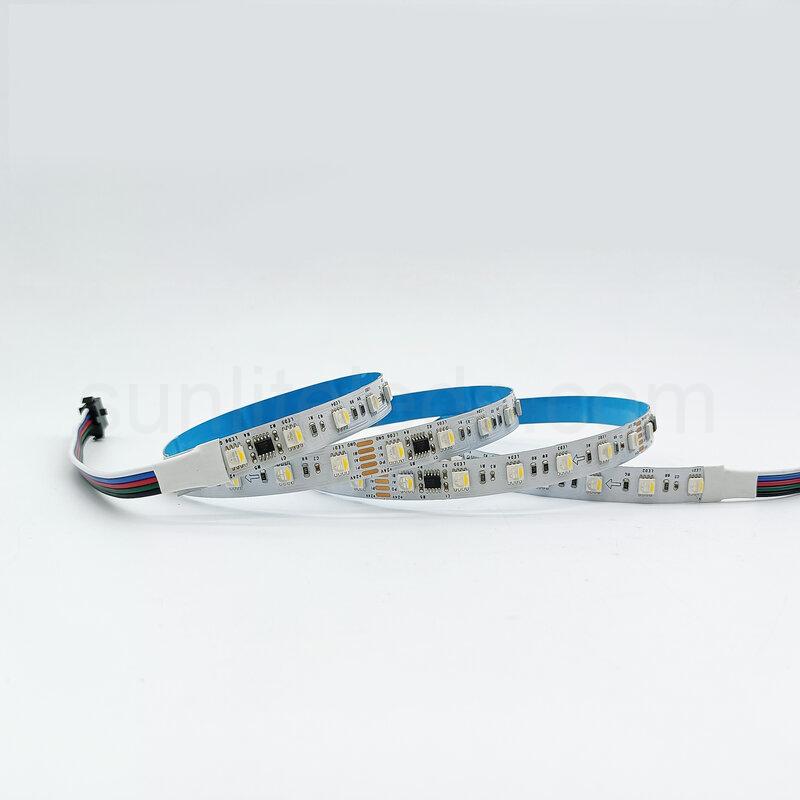

Suntechlite’s exclusive DMX RGBW LED strips have a higher density of 96 LEDs per meter. Compared to the other 60 LEDs per meter on the market, the higher density provides higher resolution and smoother lighting effects. DMX RGBW LED strips are suitable for high-quality lighting displays, professional installations, and projects that require enhanced brightness and visual details.
If you want to know more about individually addressable LED strip guide RGB RGBW and controllers, please click to view.
Click here to learn more about RGBW programmable LED strips:
Constant Current RGBW LED Strip VS Constant Voltage RGBW LED Strip Can ESP8266 Drive SK6812 RGBW Pixel LED Strips
Table of Contents
SPI External IC
Item: STE-4PIN-RGBW-72-24V
LED Qty: 72
Voltage: DC24V
Cutting Unit: 83.3 mm
Power: 24 W/m
Pixel Qty: 12 Pixels
Break Continue: Yes
PCB Width: 10mm
Normal pixel RGBW LED strip is 60leds/m, we developed this 72leds/m programmable RGBW LED strip with high density to supply to people’s requirements. TM1834 has dual signal wire make it more stable in practice.
Item: ST-TM1814-3PIN-RGBW-60-12V
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 19.2 W/m
Pixel Qty: 20 Pixels
Break Continue: No
PCB Width: 10mm
TM1814 RGBW addressable LED strip features high CRI , and TM1814 IC is external, which can easily realize the lighting effect of RGBW 4 in 1.
Item: ST-UCS2904-3PIN-RGBW-60-12V
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 19.2 W/m
Pixel Qty: 20 Pixels
Break Continue: No
PCB Width: 10mm

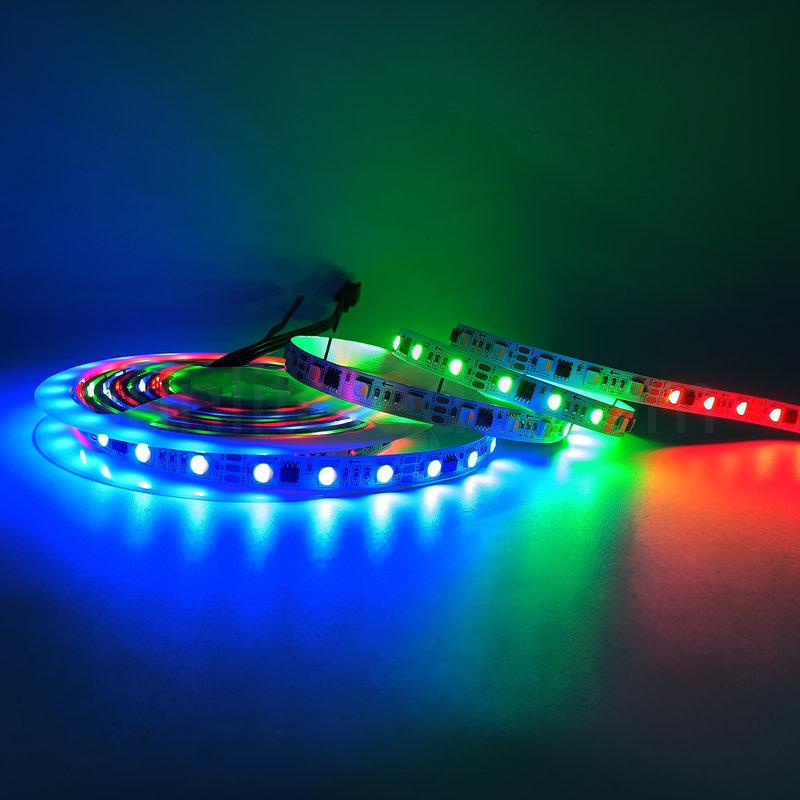

The UCS2904 addressable LED strip light is a high-performance lighting solution that combines RGB and W in a single LED, suitable for precise color lighting. The UCS2904 IC is more stable than TM1814 because of high quality.
Item: ST-UCS2904-5PIN-RGBW-60-24V
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100 mm
Power: 19.2 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 15mm
This 20m No Voltage Drop Addressable RGBW LED Strip is designed especially for large lighting projects to avoid the voltage drop problem.
Item: ST-TTL-3PIN-4040-RGBW-96-48V
LED Qty: 96
Voltage: DC48V
Cutting Unit: 125 mm
Power: 29 W/m
Pixel Qty: 8 Pixels
Break Continue: No
PCB Width: 12mm
Compared to 12V and 24V LED strips, 48V LED strips deliver the same power at lower current, minimizing cable losses and improving efficiency. This UCS2904 pixel LED strip is easy to install. To power this 48V LED strip, you need a 48V power supply.
Item: ST-TTL-3PINRGBW-96-4040-24V
LED Qty: 96
Voltage: DC24V
Cutting Unit: 62.5 mm
Power: 20 W/m
Pixel Qty: 16 Pixels
Break Continue: No
PCB Width: 10mm
The UCS8904B is a 4-channel LED display driver/controller with a built-in MCU digital interface, data latches and LED high-voltage driving functions. It features superior performance and reliable functions.
Item: ST-UCS2904-5PIN-RGBW-60-24V
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100 mm
Power: 19.2 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 15mm
This 20m No Voltage Drop Addressable RGBW LED Strip is designed especially for large lighting projects to avoid the voltage drop problem.
Item: STB-4PIN-RGBW-144-24V
LED Qty: 144
Voltage: DC24V
Cutting Unit: 41.67 mm
Power: 24 W/m
Pixel Qty: 24 Pixels
Break Continue: Yes
PCB Width: 10mm
Our 24V RGBW addressable LED strips use the UCS7604 IC to control 5050 high-brightness LED chips. Precise control of each pixel’s color, brightness, and dynamic lighting effects. Our 24V RGBW addressable LED strips have 144 LEDs per meter.
SPI Built-in IC
Item: STB-4PIN-RGBW-72-12V
LED Qty: 72
Voltage: DC12V
Cutting Unit: 13.88 mm
Power: 14.4 W/m
Pixel Qty: 72 Pixels
Break Continue: Yes
PCB Width: 10 mm

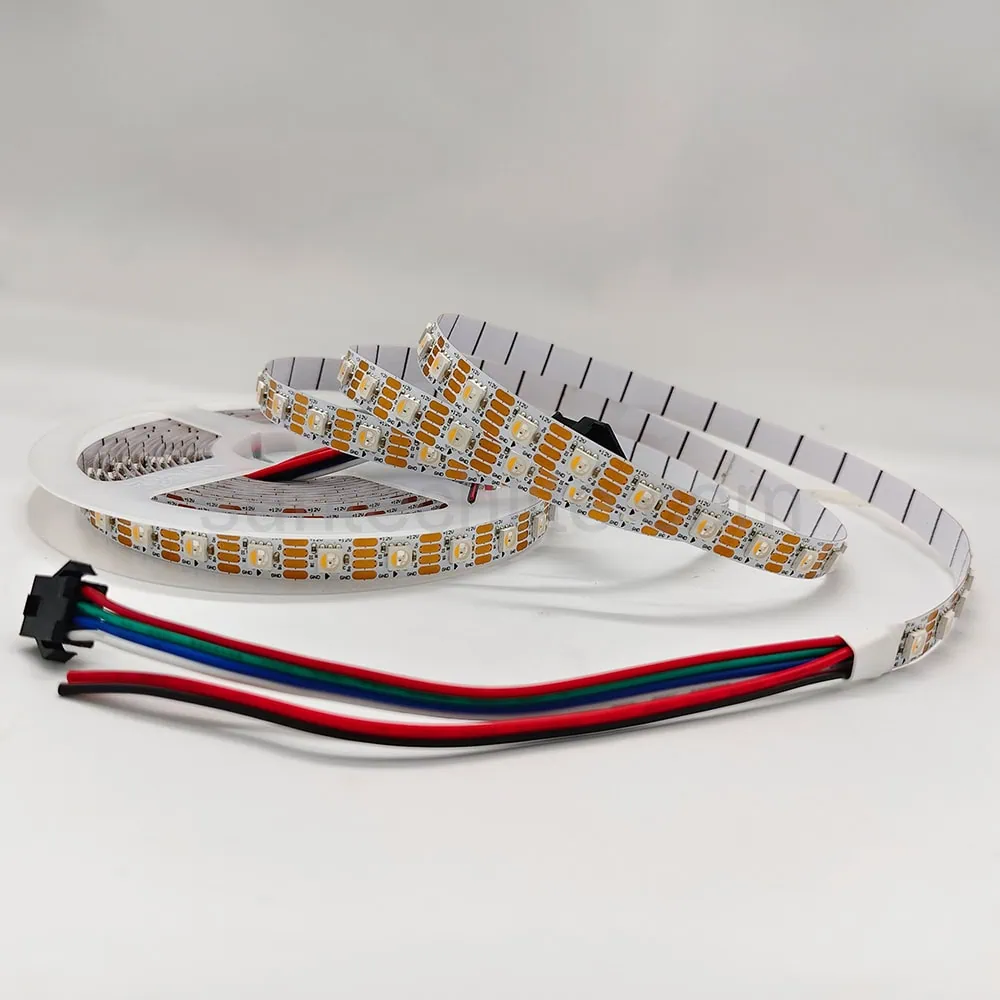

This bendable WS2815 RGBW LED strip features 72 LEDs/m on a 10mm PCB width. Dual-signal version with signal continuity: If one LED fails, the backup data signal will continue to function; however, if two LEDs fail in a row, the remaining LEDs will not illuminate. Individually addressable.
Item: ST-SK6812-3PIN-RGBW-144-5V
LED Qty: 144
Voltage: DC5V
Cutting Unit: 6.9mm
Power: 43 W/m
Pixel Qty: 144 Pixels
Break Continue: No
PCB Width: 12mm

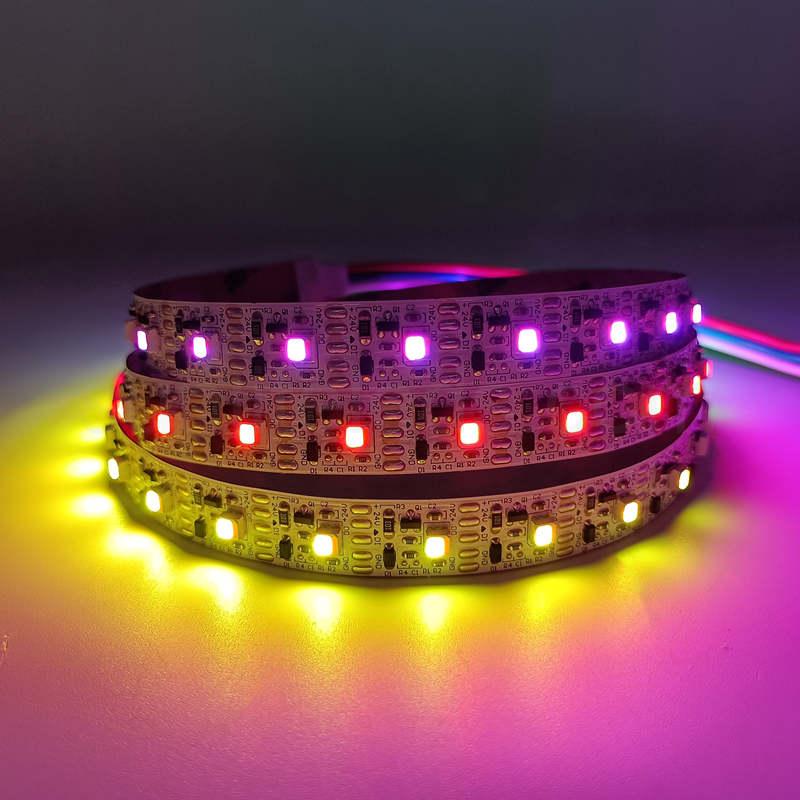

SK6812 RGBW 144leds LED strip is a high density RGBW LED strip with individual control. For SK6812 LED strip, we also have 5mm RGB and white color to choose.
Item: ST-SK6812-3PIN-RGBW-60-5V
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.67mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 10mm
10mm RGBW Individually Controlled SK6812 LED Strips offer superior color accuracy and individual control of each LED for stunning and precise lighting effects.
Item: ST-SK6812-3PIN-RGBW-60-5
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 5mm
For SK6812 5mm addressable LED strip, we have 60LEDs/m and 120LEDs/m with IP20/IP65/IP67/IP68 to choose, and length can be customized.
Item: ST-SK6812-3PIN-RGBW-144-5V
LED Qty: 144
Voltage: DC5V
Cutting Unit: 6.9mm
Power: 43.2 W/m
Pixel Qty: 144 Pixels
Break Continue: No
PCB Width: 8mm
This 144 SK6812 RGBW LED Strip 8mm has a high density and mini size, providing bright light in RGB and white color, suitable for slim space.
Item: ST-SK6812-5PIN-RGBW-66-5/24
LED Qty: 66
Voltage: DC5-24V
Cutting Unit: 15mm
Power: 21 W/m
Pixel Qty: 66 Pixels
Break Continue: No
PCB Width: 12mm
12V 24V SK6812 RGBW Individually Controlled LED Strip is developed by us to make up the wide voltage requirement of the SK6812 LED strip.
Item: STB-5PIN-RGBW-66-12/24V
LED Qty: 66
Voltage: DC12/24V
Cutting Unit: 166.67 mm
Power: 22 W/m
Pixel Qty: 66 Pixels
Break Continue: No
PCB Width: 10 mm
Different from other individual addressable led strips, this strip with 11 5050 LEDs per circuit, cut off 170mm per unit. It adopts constant current design and runs 10 meters (32.8ft) without voltage drop.
Item: STB-3PIN-RGBW-72-12V
LED Qty: 72
Voltage: DC12V
Cutting Unit: 13.8 mm
Power: 22 W/m
Pixel Qty: 72 Pixels
Break Continue: No
PCB Width: 10 mm
The 10mm 72 LEDs DC12V SK6812 Addressable RGBW LED Strip offers vibrant, full-color illumination with individually addressable pixels for dynamic lighting effects.
Item: ST-UCS7604-4PIN-RGBW-60-24
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100 mm
Power: 19.2 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10mm

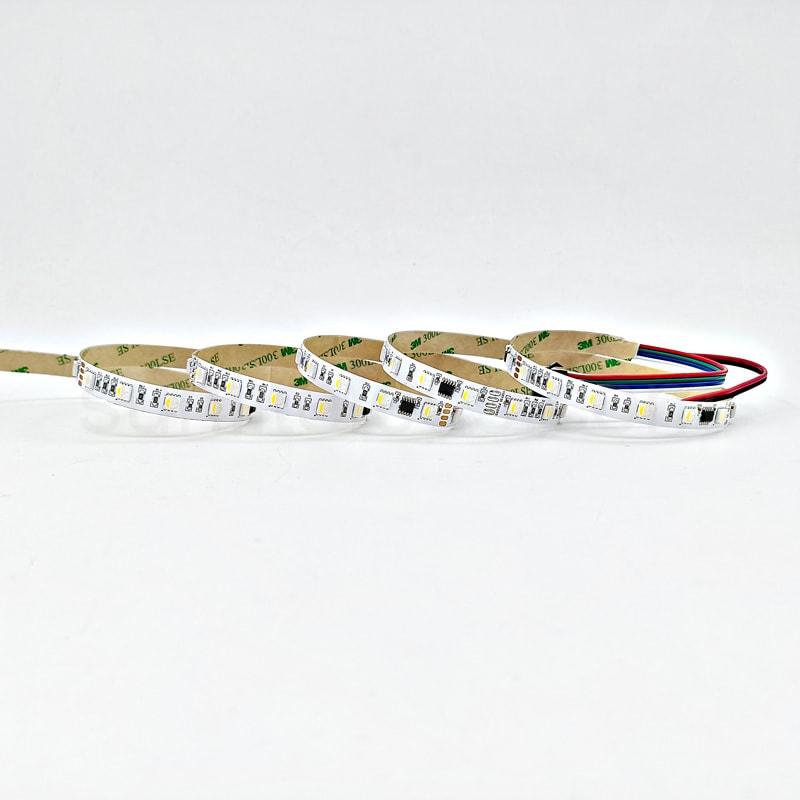

Whether for accent lighting, home decoration, or an event, the UCS7604 break continue LED strip provides an amazing lighting experience that will transform any space.
DMX
Item: ST-DMX-5PIN-RGBW-60-12/24V
LED Qty: 60
Voltage: DC12/24V
Cutting Unit: 50/100mm
Power: 19.2 W/m
Pixel Qty: 20/10 Pixels
Break Continue: Yes
PCB Width: 10mm
DMX RGBW LED strip is suitable for stage and festival colorful lighting. This auto-address RGBW LED strip makes the DMX LED strip be simple.
Item: ST-DMX-5PIN-RGBW-60-24V
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100mm
Power: 19.2 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10mm
Our RGBW DMX 24V LED Strip provides versatile and reliable lighting solutions with its auto-coding function and DMX precise control.
Item: ST-DMX-5PIN-RGBW-96-24V
LED Qty: 96
Voltage: DC24V
Cutting Unit: 62.5mm
Power: 28 W/m
Pixel Qty: 16 Pixels
Break Continue: Yes
PCB Width: 10mm
A dual data signal 5 pin dmx controlled RGBW strip light with 96 LEDs per meter. Each 6-LED segment of this dmx RGBW led tape is controlled by a 5-pin UCS512 DMX512 IC chip, so 6 LEDs are a pixel.
Item: ST-DMX/GS8516-5PIN-RGBW-96-48V
LED Qty: 96
Voltage: DC48V
Cutting Unit: 125mm
Power: 12 W/m
Pixel Qty: 8 Pixels
Break Continue: Yes
PCB Width: 10mm
DMX GS8516 LED strip is a 4-in-1 RGBW LED strip with a breakpoint resume function. Dual signal transmission data to ensure signal stability. DMX RGBW has an additional white light channel than DMX RGB.
Item: ST-DMX-5PIN-4040-RGBW-192-48V
LED Qty: 240
Voltage: DC48V
Cutting Unit: 125 mm
Power: 12 W/m
Pixel Qty: 8 Pixels
Break Continue: Yes
PCB Width: 20mm
48V DMX GS8516 LED strip uses SMD4040 LED package. There are 192 LEDs per meter. One IC controls 24 LEDs. GS8516 SMD4040 RGBW double row DMX strip can support up to 30 meters of line length.
