48V Addressable Ultra Long DMX RGBW LED Strip
Professional Pixel LED Strip Lights Manufacturer & Supplier
Product Parameter
Item: ST-DMX/GS8516-5PIN-RGBW-96-48V
Voltage: DC48V
Power: 12 W/M
Pixel Quantity: 8 pixels/m
LED Quantity: 96 LEDs/m
Cutting Unit: 125 mm
Break Continue: Yes
PCB Width: 10 mm
48V Addressable Ultra Long DMX RGBW LED Strip Pictures
48V DMX GS8516 LED strip uses SMD4040 LED package. There are 96 LEDs per meter. One IC controls 12 LEDs. GS8516 SMD4040 RGBW DMX strip can support up to 30 meters of line length. Reduce the impact of voltage drop and signal attenuation in large DMX LED lighting systems or occasions where long-distance transmission is required.
DMX GS8516 LED strip is a 4-in-1 RGBW LED strip with a breakpoint resume function. Dual signal transmission data to ensure signal stability. DMX RGBW has an additional white light channel than DMX RGB, which can present richer color effects.
By setting a unique address for each IC, you can program any lighting effect you want through DMX control. This 48V addressable ultra long DMX RGBW LED strip is suitable for large indoor main lighting, outdoor landscape ultra-long lighting, contour lighting, and lighting to create atmosphere.
48V DMX Addressable RGBW LED Strip Product Feature
Smaller, higher-density SMD4040 package.
DMX RGBW four-channel design with 65,536 grayscale levels.
48V power supply, single strip length up to 30 meters.
96 LEDs per meter. 8 GS8516 ICs per meter.
5-pin dual data signal with resumable transmission. Compatible with various DMX controllers.

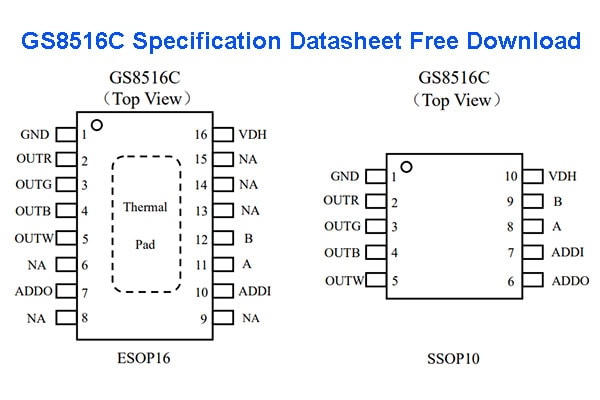

GS8516 LED IC Specification PDF Download
DMX LED Strip vs SPI LED Strip
- What is the difference between DMX vs SPI LED strips?
- Key Differences Explained
- What is a DMX LED strip?
- What is an SPI LED strip
- How to Choose DMX or SPI: Which is better？
- UCS512H4L VS UCS512C3: What’s the difference?
- Deep Dive into UCS512H4L VS UCS512C3 LED Strips
- UCS512H4L LED Pixel Light
- UCS512C3 LED Pixel Light
- Choosing Between UCS512H4L and UCS512C3
Typical Artnet Controllers For DMX LED Strip
- ENTTEC ODE Mk2
- DMXking eDMX1 Pro
- Advatek PixLite 16 MkII
- Nicolaudie STICK-DE3
- MADRIX NEBULA
- Ltech ArtNet-DMX 8
- Luminex LumiNode
- Chauvet Net-X II
- T790K
- YC3000A
DMX LED Strips & DMX Controllers: A Beginner’s Guide
- What are DMX LED Strips?
- Types of DMX LED Strips
- Ways to Control DMX LED Strip
- Normal DMX LED IC used in the market
GS8516 LED IC Feature
The GS8516C is a 4-channel LED constant current driver IC with DMX512 differential signal transmission. It supports an input voltage range of 7V–60V and withstands up to 75V at the port. The chip integrates 16-bit GAMMA correction, EEPROM, power-on/off protection, and automatic decoding, with a transmission frequency of 200kHz–850kHz. Supports online programming to enhance reliability and lifespan. Available in ESOP16 and SSOP10 packages. Operate temperature -40℃ to +85℃.
Chip Features
- Built-in 7805, operating voltage: 7V–60V
- Channel current: 3.9mA–23.4mA, default output 7.8mA
- Supports 4-bit channel current adjustment via software
- No-signal mode: optional last-frame/4-bit brightness hold
- DMX512 decoding, data rate 200k–850kHz
- Data transmission: 8-bit, built-in GAMMA correction 16-bit, GAMMA2.2, up to 65,536 levels
- Built-in PWM dimming technology, maximum refresh rate 17kHz
- Data remains displayed after programming
- Automatic protection for grounding errors
- Power-on and power-off protection functions
- ESD: 3kV
How to Control DMX LED Strip
DMX LED strips are different from the programmable LED strips with the SPI signal protocol. The DMX LED strip needs to set the address before control, because DMX signals are sent sequentially, with each channel of the DMX controller corresponding to a specific light fixture or group of fixtures.
Generally, the DMX LED strips have 5 wires: V+, address, Data A, Data B, and GND. This is a wiring diagram showing how the DMX LED strip connects with the K-1000C controller.
