12V 24V 66leds Individually Controlled White LED Strip
Professional Pixel LED Strip Lights Manufacturer & Supplier
Product Parameter
| Item | Voltage | Power | Pixel Quantity | LED Quantity | Cutting Unit | Break Continue | PCB Width |
|---|---|---|---|---|---|---|---|
| STB-TTL-4PIN-W-66-12/24V | DC12V/24V | 13.2 W/M | 66 pixels/m | 66 LEDs/m | 15.15mm | Yes | 10mm |
12V 24V 66leds Individually Controlled White LED Strip Lighting
This innovative 12V/24V 66LEDs Individually Controlled White LED Strip, featuring the WS2815 IC, is compatible with Arduino, Adafruit NeoPixel Library, Fast LED library, and Raspberry Pi, etc., can realize lighting effects such as monochrome, gradual changes, running water, horse racing, chasing, and more complex patterns.
Each LED is individually controllable. Allow for precise lighting effects in white color. It offers a spectrum of white shades, including 2700k (warm white), 3000k (soft white), 4000k (bright white), and 6500k (daylight). Cater to different ambiances and themes.
With a DC24V input, it can run up to 15 meters from one side connected to an LED driver, maintaining consistent brightness from start to finish.
The WS2815 IC dual signal enables the reliability and continuous operation of the LED strip. A perfect choice for dynamic and atmospheric lighting in nightclubs and other entertainment venues.
The recommended options are the SP636E LED controller + LRS-150-24V power supply + 4 pin RGB LED connector.
WS2815 Programmable LED Strip Feature
1. Built-in IC, individually addressable, and 256 grayscale levels.
2. Resumable download function. Enhanced anti-interference capabilities.
3. Built-in constant current driver. A single resistor and capacitor to drive a single LED. More stable output.
4. High refresh rate, suitable for fast-response dynamic lighting.
5. 24V long-range design. 15m with no voltage drop.
6. Wide compatibility: Supports multiple control platforms (such as Arduino, Raspberry Pi, ESP32, and ESP8266).
Note: This 12V WS2815 white LED strip is suitable for general projects. If you require large-scale commercial lighting, please refer to our engineering version.
- Quick Table: WS2815 vs WS2812B
- Quickly Identify WS2815 vs WS2812B LED Strip
- Application: Which to Choose, WS2815 or WS2812B?
- Differences: WS2813 vs WS2815
- Similarities: WS2813 vs WS2815
- Recommended controller
WS2815 Everything You Need To Know
- WS2815 Technical Specifications
- WS2815 LED Strip Benefits
- Advantages of Using WS2815 LED Strip
- Types of WS2815 LED Strip
- Wiring WS2815 LED Strip
- Different Options of RGBIC LED Strip Lights: Which One To Choose
- What to Consider When Choosing Addressable RGB LED Strip
- How To Use WS2815 LED Strip: Ultimate Guide
- Why Choose SuntechLite For Quality Digital LED Strip
- WS2813 vs WS2814 vs WS2815, What’s the difference?
- Deep Dive into WS2813, WS2814, and WS2815 LED Strips
- Choosing Between WS2813 vs WS2814 vs WS2815
- SK6813 vs SK6813H vs WS2815, What’s the difference?
- Better Understanding of SK6813,SK6813H and WS2815 LED Strip
- Which one is the best choice: SK6813, SK6813H, and WS2815?
WS2815 vs. WS2812 vs. WS2818 LED Strips
- WS2815 vs. WS2812 vs. WS2818 LED Chips
- WS2815 vs. WS2812 vs. WS2818 LED Strip
- Applications: WS2815 vs. WS2812 vs. WS2818 LED Strips
- WS2815 vs. WS2812 vs. WS2818 LED Strip Installation Tips
- Pros and Cons Summary WS2815 vs. WS2812 vs. WS2818
- Choosing the Right LED Strip for Your Needs
Power Consumption of WS2811 WS2812B WS2813 WS2815 & SK6812
How to Wire and Code WS2815 LED Strips on ESP32
Program WS2815 Individually Addressable LED Strips with Raspberry Pi
WS2815 IC Technical Features
- The control circuit and RGB chip are integrated into a single 5050 component, forming an externally controlled pixel.
- 12VDC power supply effectively reduces the pixel LED operating current, reduces PCB voltage drop, improves light mixing consistency, and facilitates long-distance transmission.
- Built-in signal shaping circuitry achieves signal waveform shaping without distortion.
- Each pixel has 256 grayscale levels, enabling a full-color display of “256*256*256 = 16777216” with a refresh rate of up to 2kHz.
- Serial cascade interface, requiring only a single signal line for data reception and decoding.
- Dual-line version, enabling signal resumability.
- Transmission distance between any two points exceeds 5 meters without any additional circuitry.
- At a refresh rate of 30fps, the cascade connection must be at least 1024 pixels.
- Data transmission speeds up to 800Kbps. Good color consistency and reliability, high cost performance
More details of WS2815 IC technical parameters PDF download
How to Program WS2815 LED Strip with Raspberry Pi?
The WS2815 LED strip is compatible with a variety of microcontrollers, including Arduino, Raspberry Pi, ESP32, and ESP8266. The following diagram shows how to connect a WS2815 digital LED strip to a Raspberry Pi microcontroller to control dynamic LED displays. Click Program WS2815 Individually Addressable LED Strips with Raspberry Pi for more details.
Note: This WS2815 LED strip is connected to the Raspberry Pi Microprocessor. (Before connecting to the controller, please check the correct signal direction to avoid reverse connection.)
Related Products You May Need:
Accessories

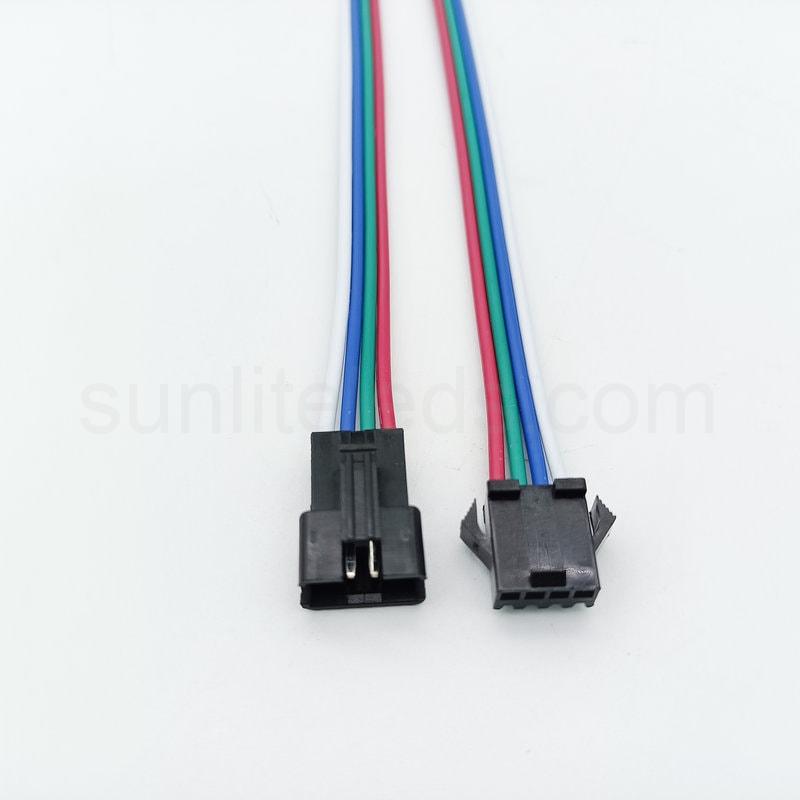

Connection Cable
